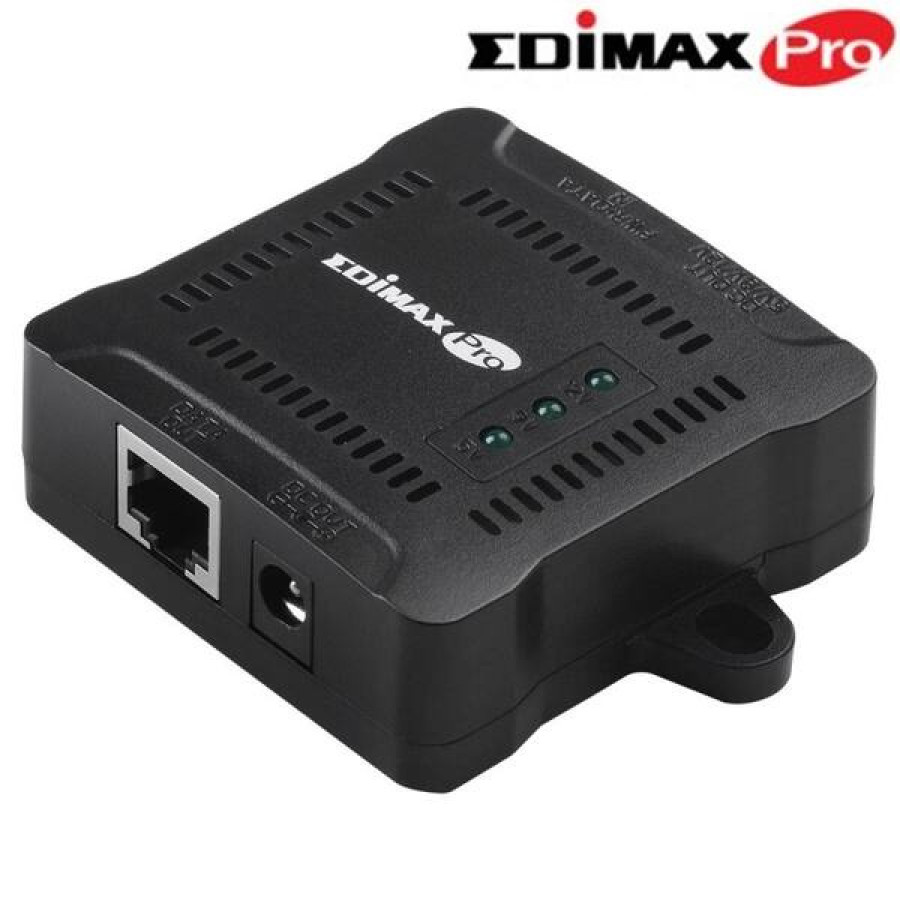

Edimax PRO PoE Splitter GP-101ST 5VDC 9VDC 12VDC

Gigabit PoE+ Splitter IEEE 802.3at with adjustable 5V DC, 9V DC or 12V DC output - Compatible with IEEE802.3at/af PoE and proprietary PoE devices, such as PoE injectors - Splits a PoE network connection into separate Gigabit data and power connections - Enables installation of non-PoE devices in remote locations where no power is available - Adjustable switch for output power settings of 5V/2A, 9V/2A or 12V/2A DC - Protects network devices from PoE short circuits - Carries power and data to the PoE splitter from a maximum distance of 100 meters (328 ft) with a single Ethernet cable - Reduces equipment and installation costs - Easy plug-and-play installation for desktop or wall mounting Brand: Edimax Pro | Model: GP-101ST | Features: Hardware - Ports: 1 x RJ-45 10/100/1000Base-T PoE input port - 1 x RJ-45 10/100/1000Base-T output port - 1 x DC power output port - LED Indicators: 5V/9V/12V, Power and AC - Power Input: IEEE 802.3af, IEEE 802.3at - Power Output: Slide switch for adjustable output power of 5V/2A, 9V/2A or 12V/2A DC - Y-Cable with DC pin (ODxIDxL): 5.5 x 2.1 x 9.5 mm and 3.5 x 1.35 x 11 mm - Pin Assignment: 1/2(+), 3/6(-) end span (Mode A) or 4/5(+), 7/8(-) midspan (Mode B) - Dimensions (L x W x H): 63 × 64 × 23 mm - Weight: 65g Environment - Temperature: Operating: 0 ~ 40°C - Storage: -40 ~ 70°C - Humidity (non-condensing): Operating: 10 ~ 90% - Storage: 5 ~ 90% Standards Compliance - Standards: IEEE 802.3 10BaseT Ethernet - IEEE 802.3u 100BaseTX Fast Ethernet - IEEE 802.3ab 1000BaseT Gigabit Ethernet - IEEE 802.3af Power Over Ethernet (PoE) - IEEE 802.3at Power Over Ethernet Plus (PoE+) - Certifications: FCC, CE | Revision Date: 16-02-2017 by MSB
