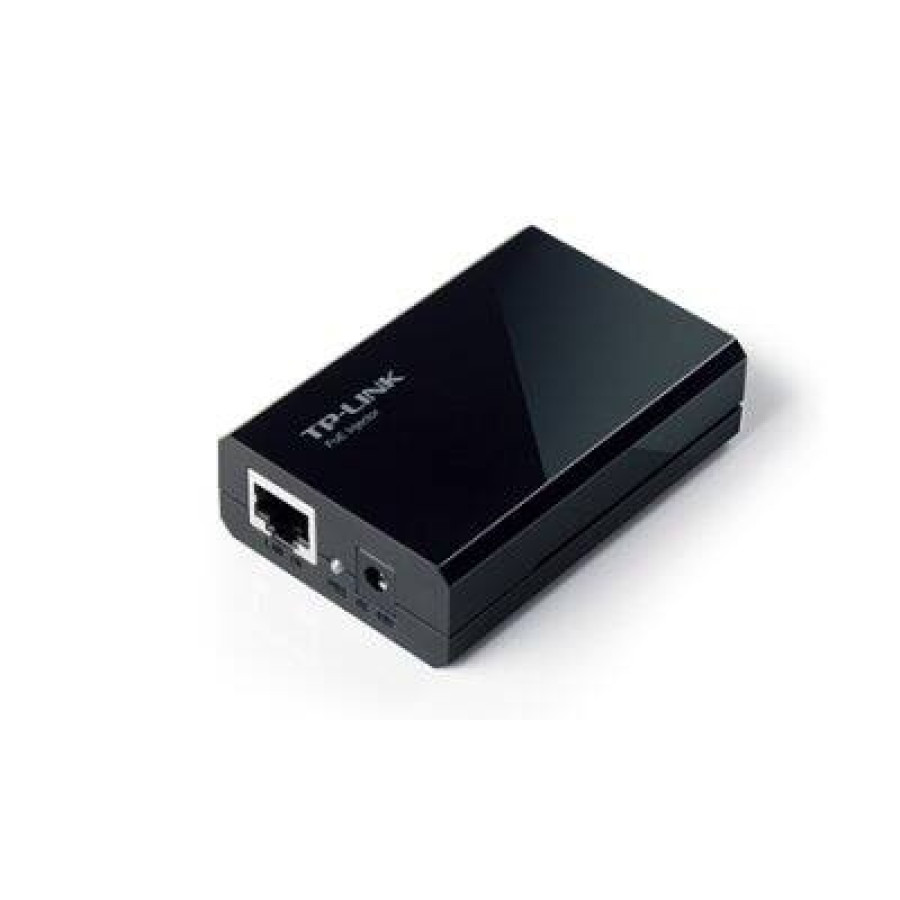

TP-LINK PoE150S PoE Injector

TP-LINK TL-POE150S PoE Injector - Compliant with IEEE 802.3af standard - Automatically determines power requirements - Supports Gigabit - Plug-and-Play support The TP-LINK TL-POE150S PoE Injector fully complies with the IEEE 802.3af standard and can work with all PoE equipment or PoE receiving adapters compatible with the IEEE 802.3af standard, such as the TP-LINK TL-POE10R model or other equivalent devices. This allows you to extend the network to areas without power outlets and use devices such as access points, cameras, or IP phones. Brand: TP-LINK Model: TL-POE150S Specifications: - Interfaces: 2 x 10/100/1000Mbps RJ45 ports with Auto Negotiation/Auto MDI/MDIX 1 x 48VDC port - Network Media: 10BASE-T: UTP Cat 3, 4, 5 cable (max 100 meters) EIA/TIA-568 100Ω STP (max 100 m) 100BASE-TX: UTP Cat 5, 5e cable (max 100 meters) EIA/TIA-568 100Ω STP (max 100 m) 1000BASE-T: UTP Cat 5, 5e or 6 cable (max 100 meters) - Dimensions (W x D x H): 80.8*54*24 mm - LED indicator: PWR (power) - Dimensions (W x D x H): 81*52*24 mm - Power supply: 15.4 W (max 48 V DC) - Supports devices compliant with IEEE 802.3af standard - Provides power supply up to 100 meters - Automatically identifies required power specifications Other Features: - Certifications: FCC, CE - System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7, MAC® OS, NetWare®, UNIX® or Linux - Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉) - Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉) - Humidity: 10% ~ 90% non-condensing - Storage Humidity: 5% ~ 90% non-condensing Revision Date: 22-04-2014 by FE4
