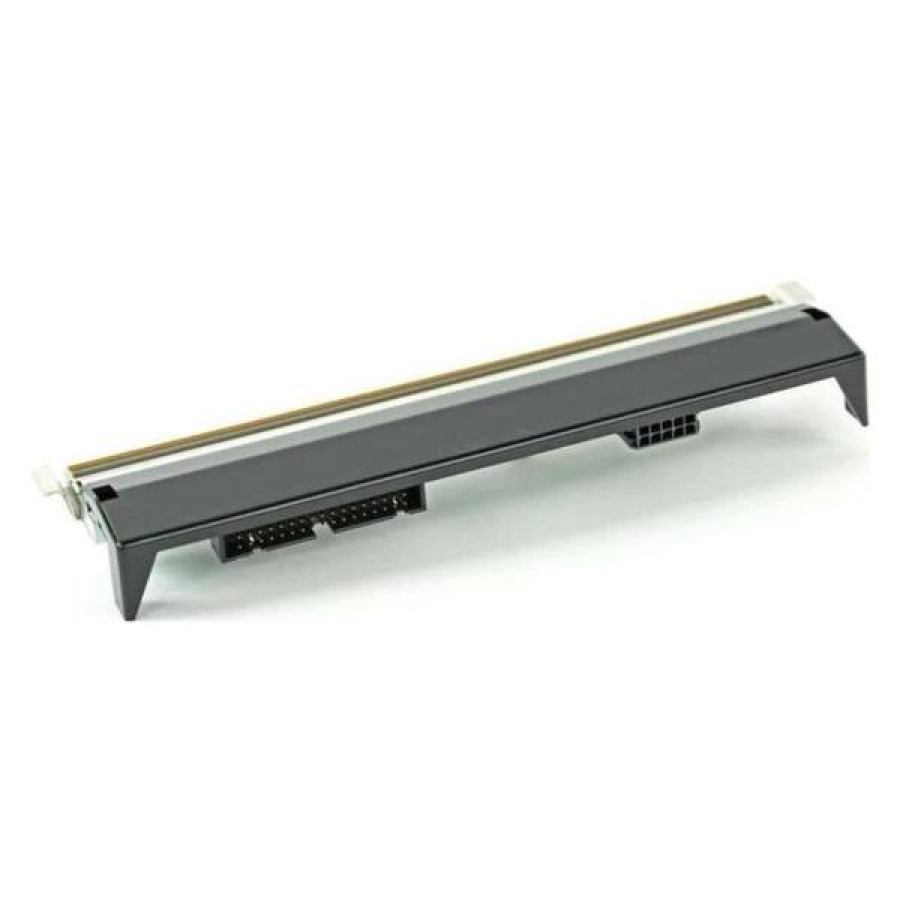

Zebra Printer Head P1058930-012

Brand: Zebra Model: P1058930-012 Features: - Printing method: thermal transfer or direct thermal - Construction: base, frame and mechanism of die-cast aluminum printhead - Resolution: 203 dpi / 300 dpi / 600 dpi - Memory: 8 MB Flash / 16 MB DRAM - Print speed: up to 254 mm/s (203 dpi) - Print width: up to 104 mm (ZM400) / 168 mm (ZM600) - Paper sensors: fixed reflective and adjustable transmissive - Integrated real-time clock - Automatic calibration Connectivity - 1 x ZebraNet 10/100 Print Server - 1 x RS-232-C serial port - 1 x IEEE 1284 bidirectional parallel port - 1 x USB 2.0 Firmware and Symbologies - Languages: ZPL II, EPL, XML, ZBI 2.0 - 1D codes: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-8, EAN-13, GS1 DataBar, UPC-A, UPC-E - 2D codes: Aztec, DataMatrix, QR Code, PDF417, MicroPDF417, TLC 39 Electrical and environmental specifications - Power supply: 90-265 V AC, 48-62 Hz - Operating temperature: 0 °C to 40 °C (direct thermal) / 5 °C to 40 °C (thermal transfer) - Storage temperature: -40 °C to 60 °C - Operating humidity: 20% to 85% non-condensing Dimensions and weight - 278 x 475 x 338 mm - 15 kg Date of review: 22-06-2026 by IS
